Big Boy Drivers Seat Modification for 1943 MB Willys Jeep

Another way to get more leg room in GPW & MB Jeeps

I really hated to start chopping the rig up to get more leg room, but it was necessary to do something. After doing some thinking I came up with this idea as the least invasive way of moving the seat back. The only thing chopped is the seat frame and that is easily replaced if another person wanted to put it back stock.     "Bubbaed" ???... maybe, but I now fit behind the steering wheel and can also get my feet on the pedals.

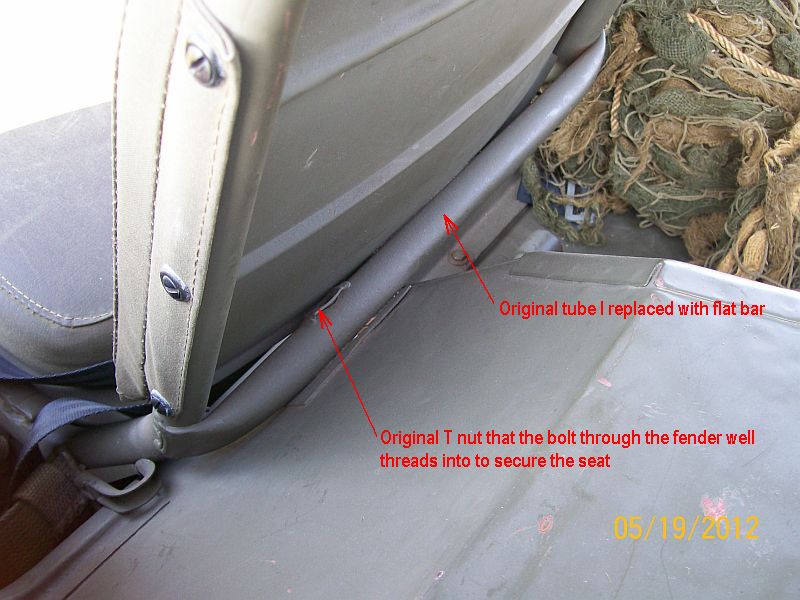

Original Drivers Seat Viewed from rear

Original drivers seat rear-a.jpg (89764 bytes)

Cut out lower cross tube to make room for seat moving back. I fitted a piece of flat bar to put in place of it.

Fuel Tank Protector & flat bar brace 6a.jpg (61441 bytes)    Drivers seat back brace bolt 11a.jpg (60573 bytes)

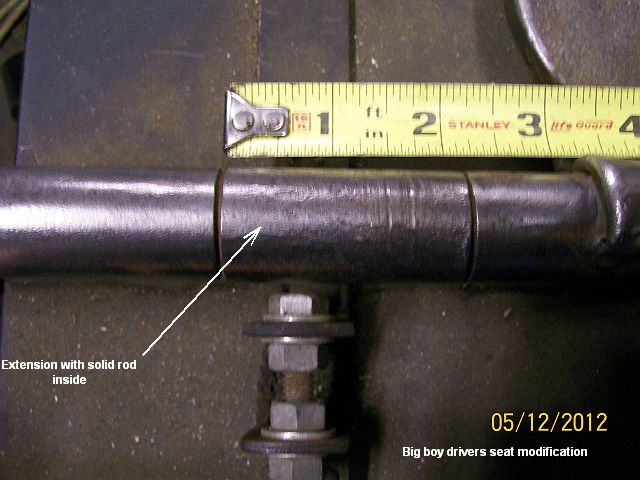

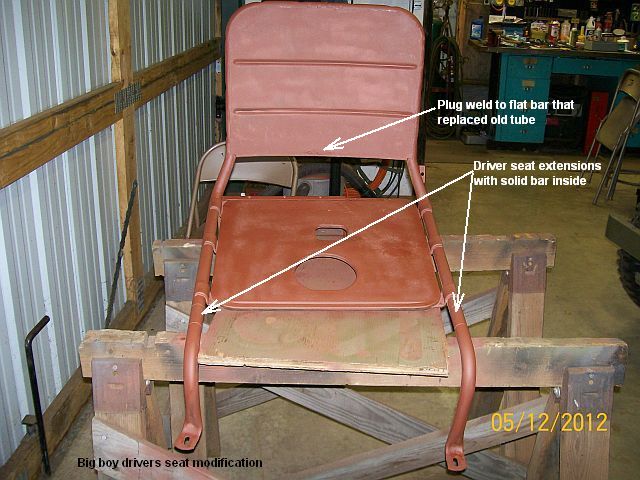

Next... Make tube extensions for both support tubes. I put solid bar inside mine for strength.

Drivers seat frame extension 1a.jpg (60400 bytes)    Drivers seat frame extension 3a.jpg (52642 bytes)    Drivers seat frame extension 8a.jpg (62920 bytes)    Drivers seat frame extension 10a.jpg (81117 bytes)

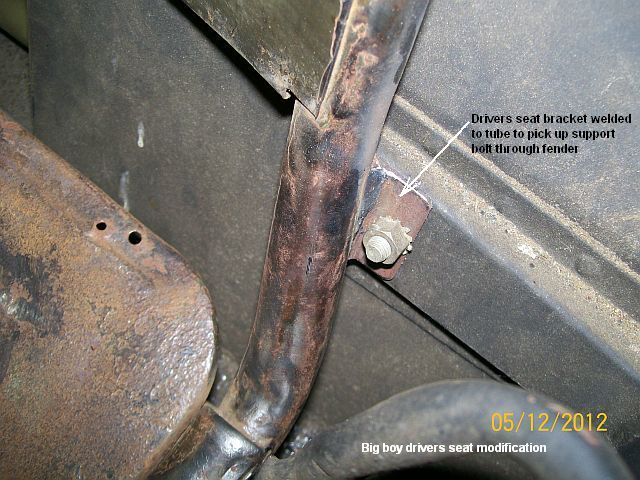

Next... Cut & fit a short piece of angle iron and weld to back side of upright tube.

Drivers seat back brace bolt 2a.jpg (88274 bytes)    Drivers seat back brace bolt 3a.jpg (60266 bytes)    Drivers seat back brace bolt14a.jpg (46872 bytes)

This picture shows the new clearance with the cross tube removed and the seat shoved back all the way.

Drivers seat back brace bolt 6a.jpg (62814 bytes)

This mod worked for me. Just another idea on the web.
